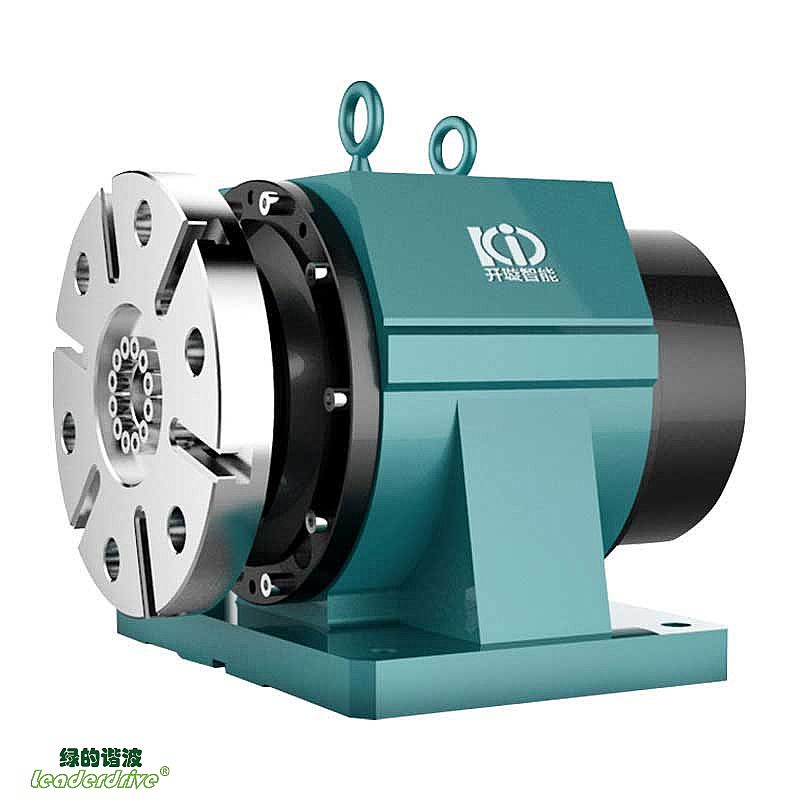

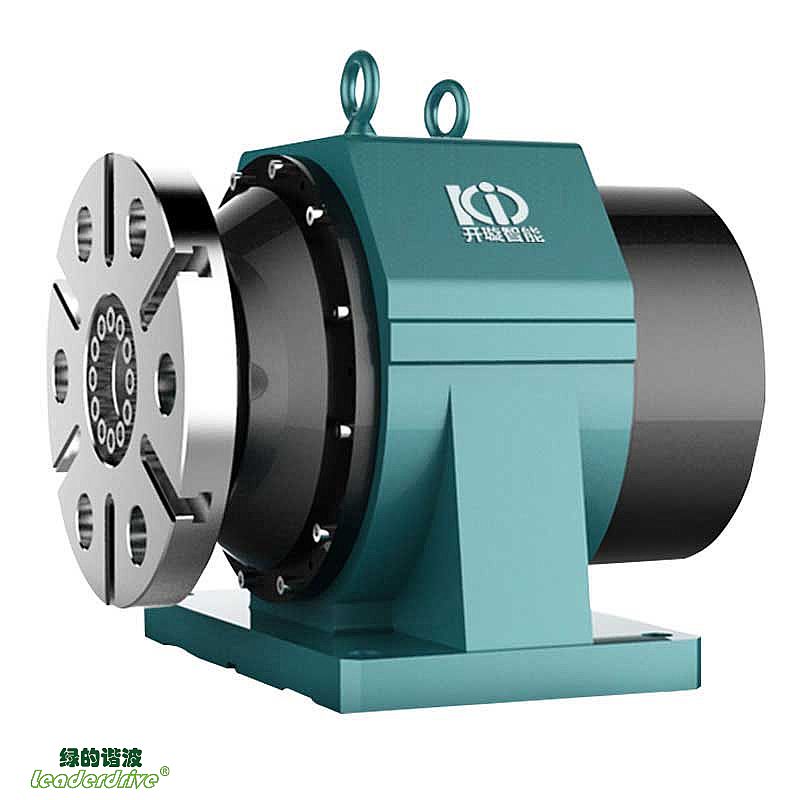

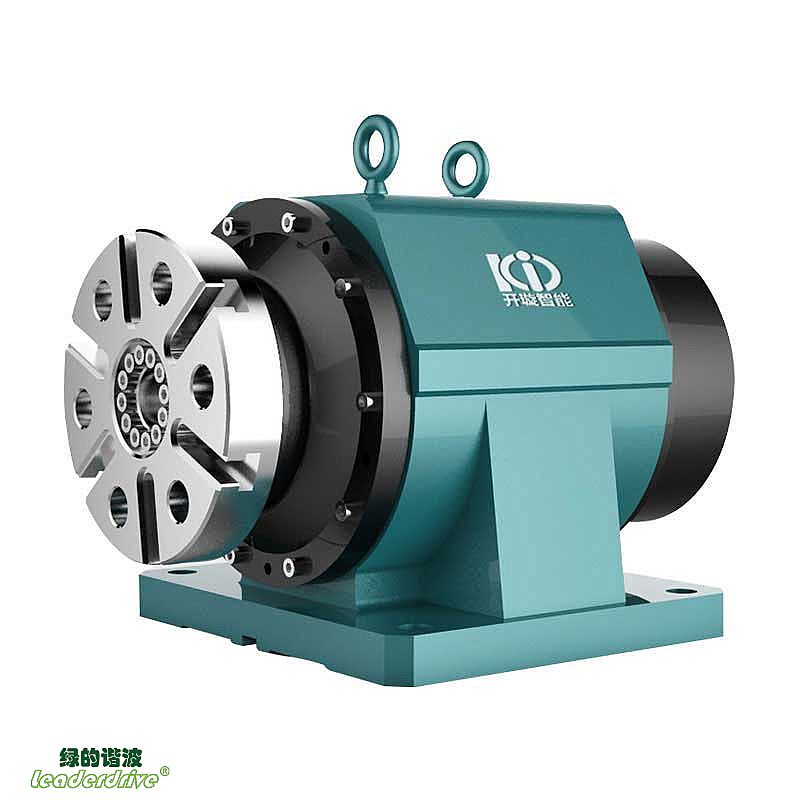

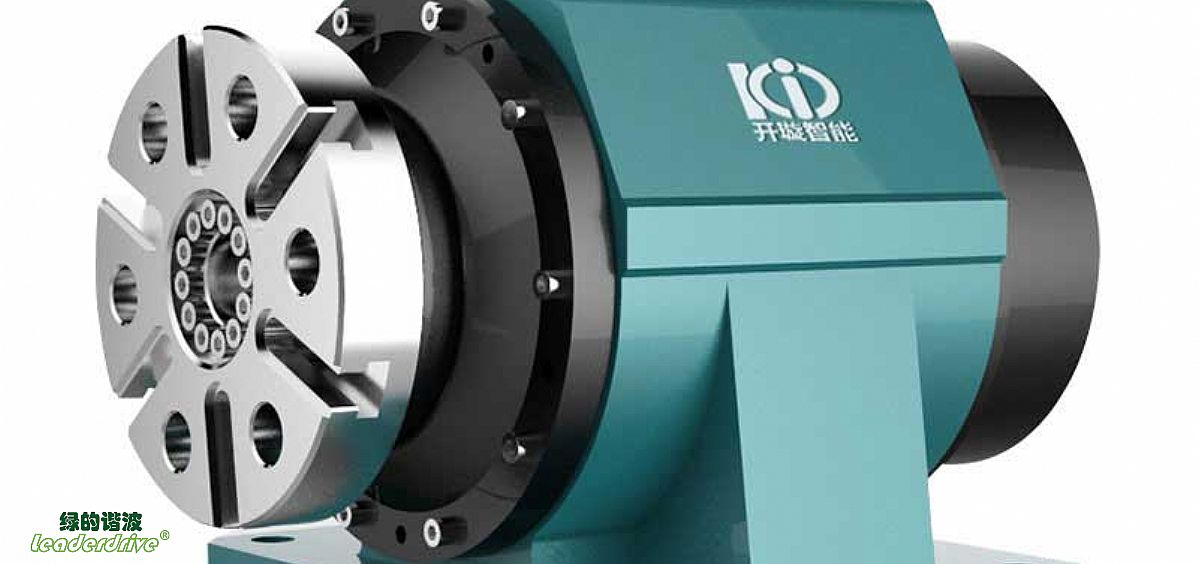

4th Axis NC Rotary Table

Ref: KCR

The 4th axis NC Rotary Table from Leaderdrive is based on high-precision third-harmonic turntables, with ultra-long precision to maintain life and ultra-high indexing accuracy. They are mainly used in the field of CNC high-end precision machining and manufacturing.

Our rotary table contains the world's first third-harmonic transmission system, which is adopted from Leaderdrive's own international PCT patents. It also includes our self-developed high-power-density direct-drive motors and an integrated direct connection to achieve a fast dynamic response. It is currently the only NC Rotary Table on the market with an accuracy of less than 10 arcseconds, ultra-high rigidity, and maximum clamp torque of 1470 Nm.

The structure's quality ensures that accuracy will remain unchanged for more than five years without the need for regular maintenance. Contact Leaderdrive for more information on this product, including detailed specifications and technical manuals, performance data, and pricing guides.

Product details:

High precision: The absolute positioning accuracy is within 10 arcseconds (0.0028 degrees).

Zero gap: Gapless harmonic drive.

Large torque: Small size, large torque; output torque up to 1470 Nm.

Maintenance-free: No accuracy deterioration, and no regular maintenance required. The accuracy will remain unchanged after more than 20,000 hours of use.

Integration: Highly integrated, with a built-in ultra-high-precision, high-rigidity special strain wave gear harmonic speed reducer for machine tools (PCT international patent product), and a high-power density, low cogging torque power support giant motor.

Fast response: Excellent dynamic response.

Fast positioning: No gaps and high rigidity; no need to brake when working, significantly shortening the positioning time.

High efficiency: The efficiency is as high as 75% to 80%, saving energy.

If you want to know more about our products, you can download our Product Introduction Manual and 3D Model here.

Order Number

KCR	-	250	F	F	C	N
①			②	③	④	⑤

➀ Model

Model	Disk Diameter (mm)	Center Height of Disk (mm)
KCR-170	170	135
KCR-200	200	135
KCR-250	250	160
KCR-320	320	210

➁ Structure Type

F: 4th Axis Standard Structure

➂ CNC System

F: FANUC
M: Mitsubishi CNC
S: Siemens CNC

➃ Version Number

C: Default Parameters

➄ Additional Conditions

N: Default None

KCR Series NC Rotary Table Specifications

Model		Unit	KCR-170	KCR-250	KCR-320
Disk Diameter		mm	Ф170/Ф200	Ф250	Ф320
Disk Center Hole Diameter		mm	Ф32.5	Ф38.5	Ф65.5
Inner Hole Diameter of Spindle Sleeve		mm	Ф32H7	Ф38H7	Ф65H7
Center Height		mm	135	160	210
T-Slot Width		mm	12H7	12H7	14H7
Bottom Guide Key Width		mm	14h6	18h6	18h6
Transfer Method		/	Strain Wave Gears	Strain Wave Gears	Strain Wave Gears
Transmission Efficiency		/	75%~80%	75%~80%	75%~80%
Cooling Method		--	Natural Cooling	Natural Cooling	Natural Cooling
Minimum Angle Setting		deg.	0.001	0.001	0.001
Segmentation Accuracy		sec.	10	10	10
Repeatability		sec.	4	4	4
Power-Off Locking Method		/	Electromagnetic power failure brake	Electromagnetic power failure brake	Electromagnetic power failure brake
Power-Off Locking Torque		N·m	350	650	1300
Reduction Ratio		/	1:121	1:121	1:121
Maximum Speed of Worktable		RPM	50	50	50
Allowable Load Inertia Capacity		kg·m2	48	98	362
Maximum allowable workpiece weight (dynamic)	Cantilever Use Tailstock	kg kg	145 290	200 400	380 760
Maximum allowable external load (when enabled)	Vertical radial moment Tangential moment	N·m N·m	920 267	3060 557	6250 1470
Allowable Cutting Torque		N·m	250	500	1200
Turntable Weight		kg	52	83	160
