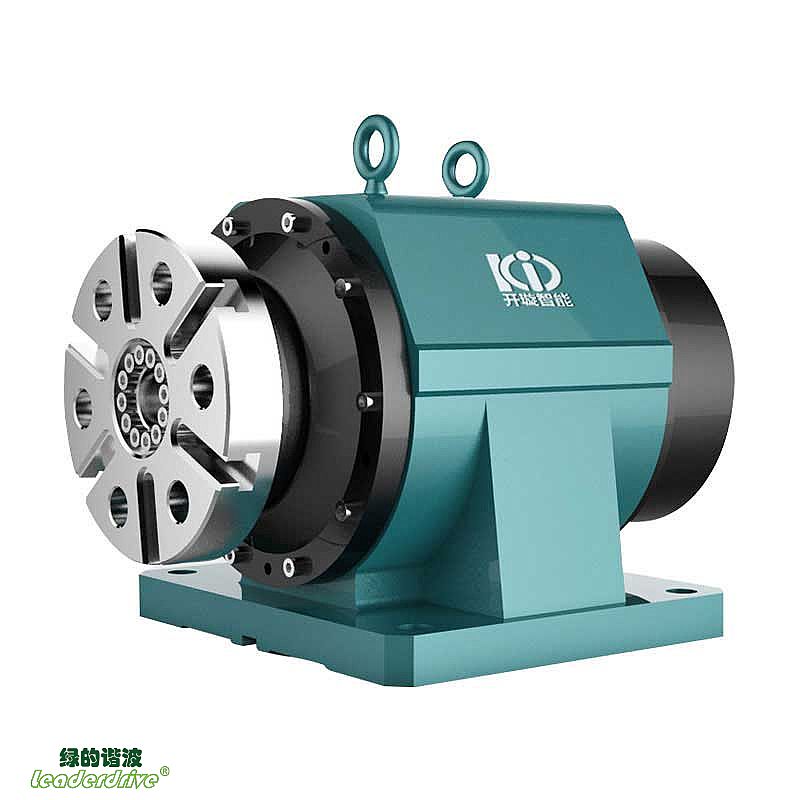

4th Axis NC Rotary Table
Ref: KCR
The 4th axis NC Rotary Table from Leaderdrive is based on high-precision third-harmonic turntables, with ultra-long precision to maintain life and ultra-high indexing accuracy. They are mainly used in the field of CNC high-end precision machining and manufacturing.
Our rotary table contains the world's first third-harmonic transmission system, which is adopted from Leaderdrive's own international PCT patents. It also includes our self-developed high-power-density direct-drive motors and an integrated direct connection to achieve a fast dynamic response. It is currently the only NC Rotary Table on the market with an accuracy of less than 10 arcseconds, ultra-high rigidity, and maximum clamp torque of 1470 Nm.
The structure's quality ensures that accuracy will remain unchanged for more than five years without the need for regular maintenance. Contact Leaderdrive for more information on this product, including detailed specifications and technical manuals, performance data, and pricing guides.
The 4th axis NC Rotary Table from Leaderdrive is based on high-precision third-harmonic turntables, with ultra-long precision to maintain life and ultra-high indexing accuracy. They are mainly used in the field of CNC high-end precision machining and manufacturing.
Our rotary table contains the world's first third-harmonic transmission system, which is adopted from Leaderdrive's own international PCT patents. It also includes our self-developed high-power-density direct-drive motors and an integrated direct connection to achieve a fast dynamic response. It is currently the only NC Rotary Table on the market with an accuracy of less than 10 arcseconds, ultra-high rigidity, and maximum clamp torque of 1470 Nm.
The structure's quality ensures that accuracy will remain unchanged for more than five years without the need for regular maintenance. Contact Leaderdrive for more information on this product, including detailed specifications and technical manuals, performance data, and pricing guides.
Product details
Parameters
Product details:
High precision: The absolute positioning accuracy is within 10 arcseconds (0.0028 degrees).
Zero gap: Gapless harmonic drive.
Large torque: Small size, large torque; output torque up to 1470 Nm.
Maintenance-free: No accuracy deterioration, and no regular maintenance required. The accuracy will remain unchanged after more than 20,000 hours of use.
Integration: Highly integrated, with a built-in ultra-high-precision, high-rigidity special strain wave gear harmonic speed reducer for machine tools (PCT international patent product), and a high-power density, low cogging torque power support giant motor.
Fast response: Excellent dynamic response.
Fast positioning: No gaps and high rigidity; no need to brake when working, significantly shortening the positioning time.
High efficiency: The efficiency is as high as 75% to 80%, saving energy.
If you want to know more about our products, you can download our Product Introduction Manual and 3D Model here.
Order Number
KCR | - | 250 | F | F | C | N |
① | ② | ③ | ④ | ⑤ | ||
➀ Model
Model | Disk Diameter (mm) | Center Height of Disk (mm) |
KCR-170 | 170 | 135 |
KCR-200 | 200 | 135 |
KCR-250 | 250 | 160 |
KCR-320 | 320 | 210 |
➁ Structure Type
➂ CNC System
M: Mitsubishi CNC
S: Siemens CNC
➃ Version Number
➄ Additional Conditions
KCR Series NC Rotary Table Specifications
| Model | Unit | KCR-170 | KCR-250 | KCR-320 | |
|---|---|---|---|---|---|
| Disk Diameter | mm | Ф170/Ф200 | Ф250 | Ф320 | |
| Disk Center Hole Diameter | mm | Ф32.5 | Ф38.5 | Ф65.5 | |
| Inner Hole Diameter of Spindle Sleeve | mm | Ф32H7 | Ф38H7 | Ф65H7 | |
| Center Height | mm | 135 | 160 | 210 | |
| T-Slot Width | mm | 12H7 | 12H7 | 14H7 | |
| Bottom Guide Key Width | mm | 14h6 | 18h6 | 18h6 | |
| Transfer Method | / | Strain Wave Gears | Strain Wave Gears | Strain Wave Gears | |
| Transmission Efficiency | / | 75%~80% | 75%~80% | 75%~80% | |
| Cooling Method | -- | Natural Cooling | Natural Cooling | Natural Cooling | |
| Minimum Angle Setting | deg. | 0.001 | 0.001 | 0.001 | |
| Segmentation Accuracy | sec. | 10 | 10 | 10 | |
| Repeatability | sec. | 4 | 4 | 4 | |
| Power-Off Locking Method | / | Electromagnetic power failure brake | Electromagnetic power failure brake | Electromagnetic power failure brake | |
| Power-Off Locking Torque | N·m | 350 | 650 | 1300 | |
| Reduction Ratio | / | 1:121 | 1:121 | 1:121 | |
| Maximum Speed of Worktable | RPM | 50 | 50 | 50 | |
| Allowable Load Inertia Capacity | kg·m2 | 48 | 98 | 362 | |
| Maximum allowable workpiece weight (dynamic) | Cantilever Use Tailstock | kg kg | 145 290 | 200 400 | 380 760 |
| Maximum allowable external load (when enabled) | Vertical radial moment Tangential moment | N·m N·m | 920 267 | 3060 557 | 6250 1470 |
| Allowable Cutting Torque | N·m | 250 | 500 | 1200 | |
| Turntable Weight | kg | 52 | 83 | 160 | |
